Komatsu 931XC

Comfort, stability and exceptional manoeuvrability

Komatsu 931XC

The Komatsu 931XC is a powerhouse offering considerable stability and low ground pressure. With eight wheels, operator comfort is high, ground damage is reduced and manoeurability is excellent in steep terrain

Features

Markets largest hydraulic capacity

The 931XC comes with Komatsu’s unique 3-pump hydraulics. This means that it offers the market’s largest total hydraulic capacity of 736 litres. In addition, the unique pressure and flow optimisation enables you to work significantly faster without losing power when using certain functions. On the contrary, you can now perform several crane and head functions simultaneously with maximum hydraulic power, such as slewing the crane, feeding a log and manoeuvring the machine, with optimally low fuel

Excellent operator environment

The high-performance operator environment in the new 931XC is unique in several respects. Some of the many new features and benefits include the larger cab volume, improved visibility, smarter screen placement and remote control/key for controlling the main circuit breaker and the cab heater. There are also improved storage solutions, optimised air conditioning and lighting, as well as three joystick system alternatives, including EME. Optional extras include our unique cab suspension, Autolev Advanced, and a complete media hub (MediaZone) with both USB and AUX

Maximised productivity

An impressive 187 kN of underlying tractive force and unique interaction between engine, control system and power transmission. The hydrostatic, power-optimised transmission in the 931XC enables full use of engine power, which is a great advantage when navigating gradients and difficult terrain. There are also several pre-set and task specific driving modes. The result is maximised productivity and benefit from every ounce of horsepower and litre of diesel. consumption

The most stable harvester

The feature that makes the Komatsu 931XC the most stable harvester is a type of double suspension. The tried and tested concept of an articulated joint and a swing axle, which along with the cab’s tilt cylinders deliver superior stability, has now been developed with a bogie that is installed on the single axle. This results in a harvester with unique driving properties as the manner in which the machine follows any unevenness in the terrain is unparalleled.puts.

Specifications

931XC

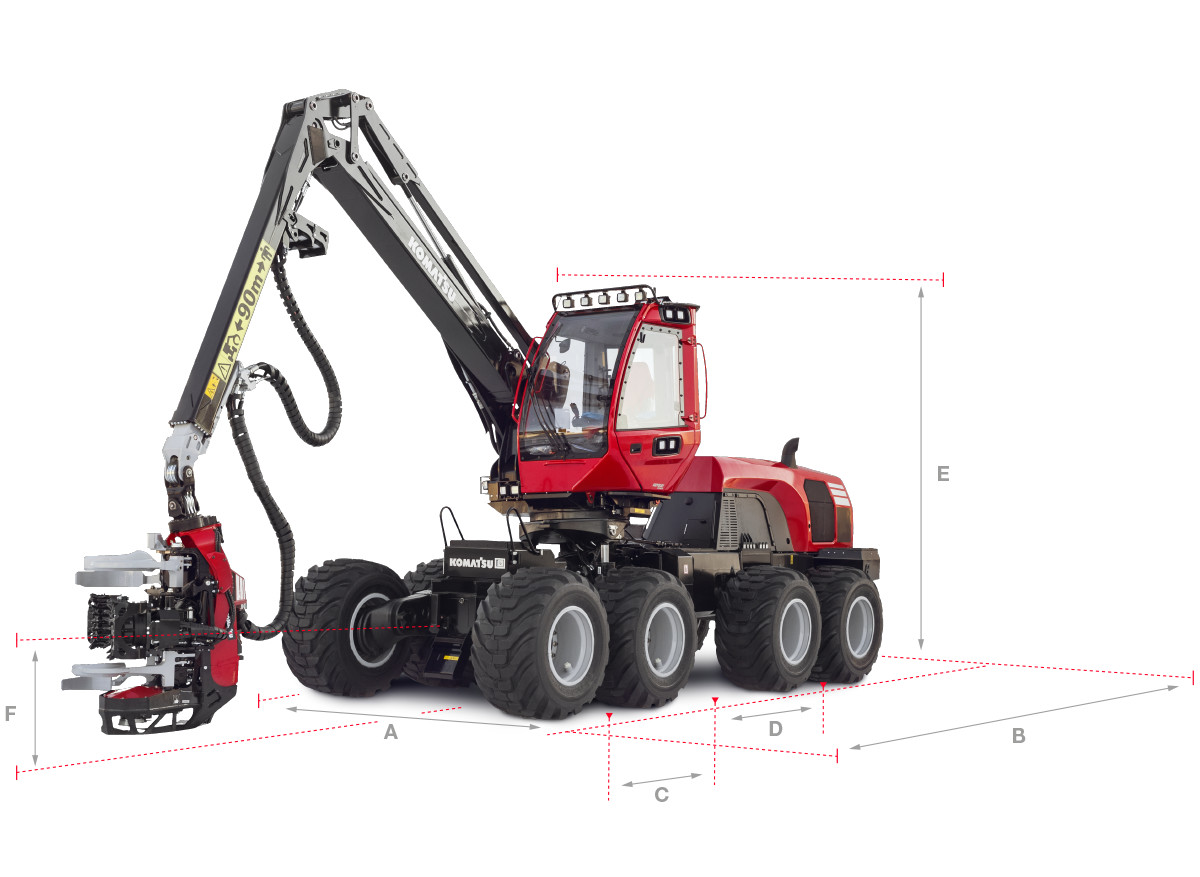

Overview

A. Width

With 600/55x26.5 tyres: 2 776 mm. With 710/45x26.5 tyres: 2 996 mm

B. Length, total

8 015 mm

C. Length, front axle to middle joint

1 930 mm

D. Length, middle joint to rear axle

2 150 mm

E. Transport height

3 955 mm

F. Ground clearance

710 mm

Approximate weight

from 21 700 kg

Type

74 CW12, 6-cylinder diesel engine with turbo and intercooler. Stage 2.

Stroke volume

7.4 L

Power

185 kW DIN at 1,900 rpm

Torque

1100 Nm at 1,500 rpm

Fuel tank

Approx 480 L

Model and reach

230H: 8.7 m, 10 m, 11 m

Gross lifting torque

229 kNm

Gross slewing torque

54 kNm

Available heads

8.7 m: S92, C93, C123, S132, C144, V132E. 10 m: S 92, C93, C123, S132, C144, V132E. 11 m: S92, C93, C123

Flow

528 l/min at 1,600 rpm

System pressure

280 bar (4,061 psi)

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Driving speed

0-7,6/23 km/h (off-road/road)

Tractive force

187 kN

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
