Komatsu 951

Collossally Powerful

Komatsu 951

The new Komatsu 951 is the largest harvester you can find on the market. A giant packed with future technology that delivers completely new levels of productivity, operator comfort and eco-friendliness. A few of the most important strength are presented here.

Features

Almost unstoppable

Komatsu Comfort Bogie, our unique portal bogie, provides superb stability, ground clearance and manoeuvrability.

Revolutionary 3-pump hydraulics

The 951's immense work capacity is much due to the brand new 3-pump hydraulics, split into dual circuits with separate pressure levels. The system is power-regulated against the diesel engine and offers a class-leading hydraulic capacity of 584 l/min. Unique pressure and flow optimisation enables you to work considerably faster without losing hydraulic power. You can operate several crane and head functions simultaneously with maximum hydraulic power, such as slewing the crane, feeding a log and manoeuvring the machine with optimally low fuel consumption.

Large and spacious cab

New large and spacious cab in a new design. Built on our proven, ergonomic and reliable cab concept. Gives a more silent working environment, an exclusive interior with car type material, lots of dedicated storage space,and much more.

Specifications

951

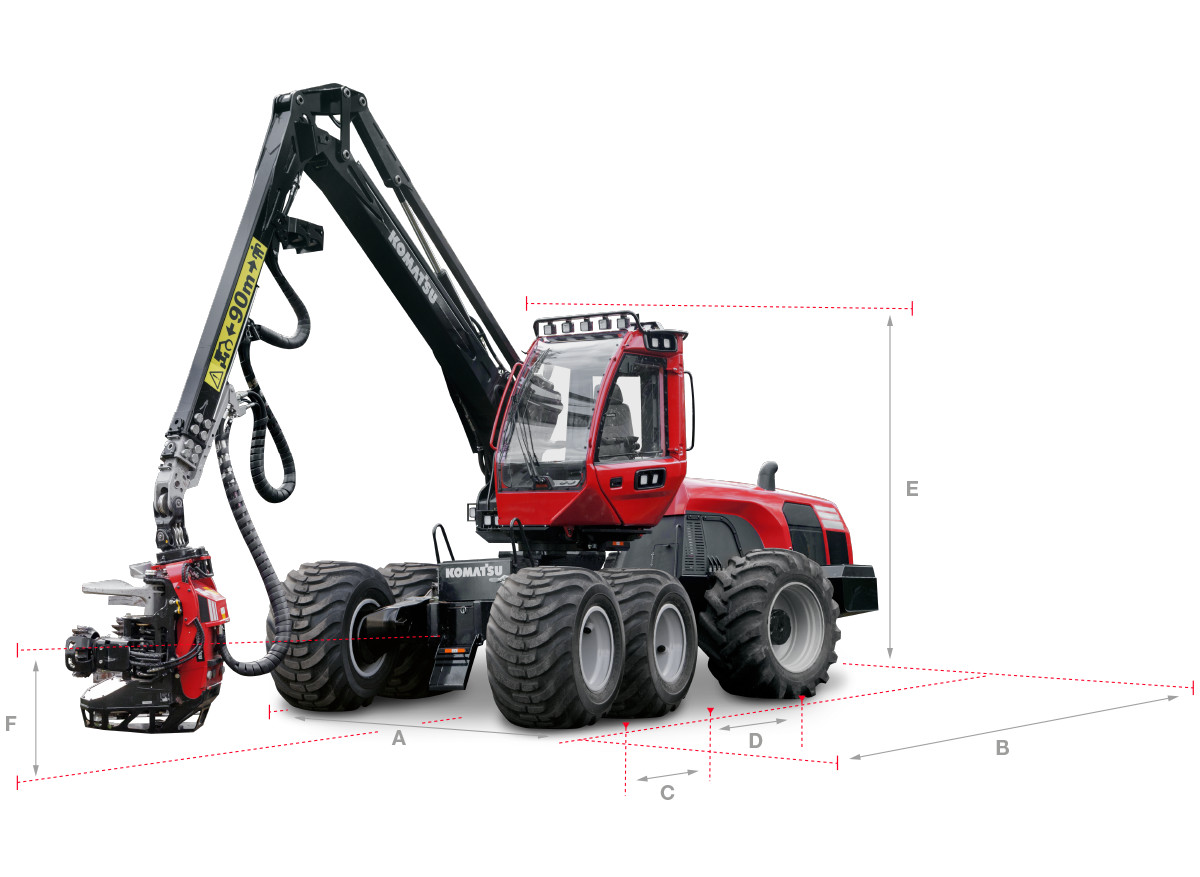

Overview

A. Width

With 710/70x34 tyres: 3 060 mm. With 780/50x28.5 tyres: 3 160 mm

B. Length, total

8 310 mm

C. Length, front axle to middle joint

2 300 mm

D. Length, middle joint to rear axle

1 850 mm

E. Transport height

3 955 mm

F. Ground clearance

670 mm

Approximate weight

from 23 600 kg

Type

74 CW12, 6-cylinder diesel engine with turbo and intercooler. Stage 2.

Stroke volume

7.4 L

Power

210 kW DIN (282 hp) at 1,900 rpm

Torque

1200 Nm at 1,500 rpm

Fuel tank

529 L

Model and reach

270H: 8.5 m, 10.3 m

Gross lifting torque

274 kNm

Gross slewing torque

60 kNm

Available heads

8,6 m: C202, C202E. 10.3 m: C123, S132, C144, V132E, S172

Flow

528 l/min at 1,600 rpm

System pressure

280 bar (4,061 psi)

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Driving speed

0-7,7/23,5 km/h (off-road/road)

Tractive force

220 kN

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
