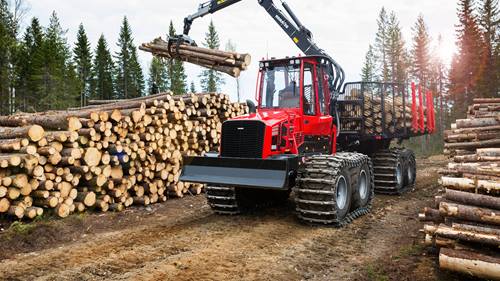

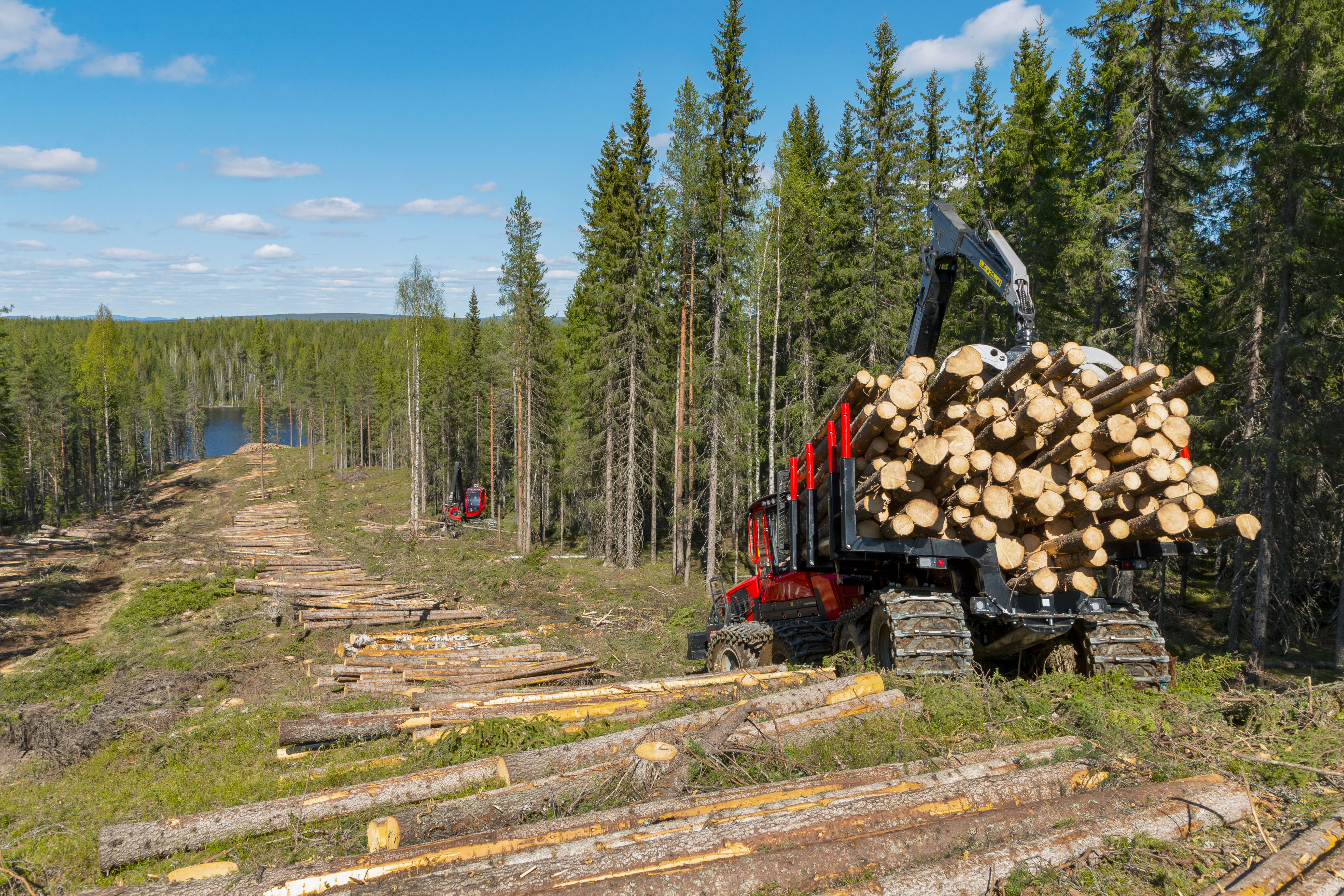

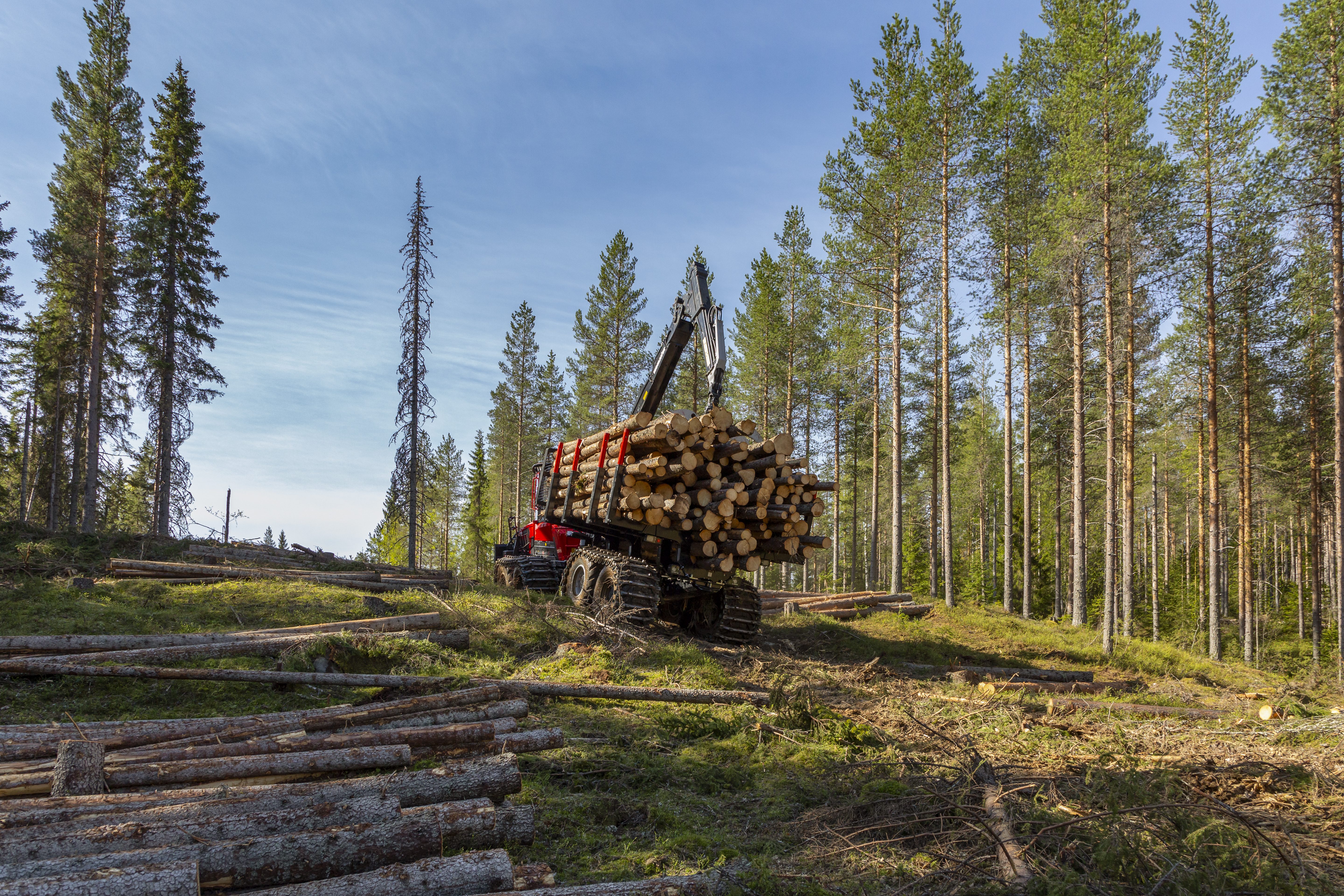

Komatsu 895

A reliable and productive forwarder

Komatsu 895

The Komatsu 895 is designed for high productivity. Each component has been developed and optimized for a load capacity of 20 tonnes. The current model is even more powerful than before. With even higher power, torque and traction, the forwarder has outstanding performance for heavy loads.

Download brochure

Gross load

20,000 kg

Power

210 kW DIN at 1,900 rpm.

Torque

1,280 Nm at 1,500 rpm.

Tractive force

262 kN

Features

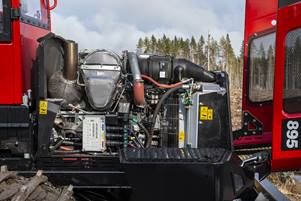

More power for sustainable productivity

We have a brand new engine installation conforming to the latest emission legislation (Stage V). It also offers you many other advantages, such as an all new AdBlue system, a new exhaust system and hydraulic tappets. Despite the new larger engine installation we’ve managed to keep the same slim design with good all round visibility and views of the machine – right down to the wheels.

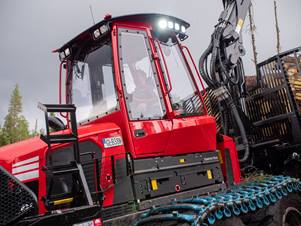

Komatsu Comfort Ride

A forwarder operator spends many hours a day in the cab, making a pleasant and comfortable work environment extremely important. Komatsu Comfort Ride efficiently dampens jolts and vibrations, ensuring an ergonomic work environment. This in turn contributes to higher productivity and better profitability.

The new generation of Komatsu Comfort Ride comes with comfort-enhancing features like adjustable sideways firmness and automatic side levelling at standstill and at low speed. The elevated unloading mode now also works at low speed, to make it smoother to reposition the forwarder at the landing. Great news for all forwarder operators!

Smoother and faster transport

Komatsu Mini Steering Wheel means more space in the cab and a more comfortable driving experience. SpeedShift (Option) enables you to drive the machine at any speed between 0 and about 23 km/h without stopping to change gears – increasing productivity and saving fuel.

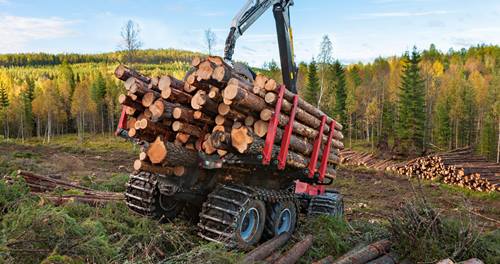

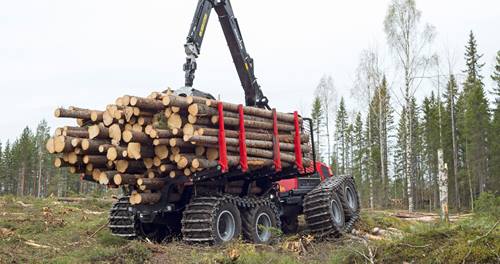

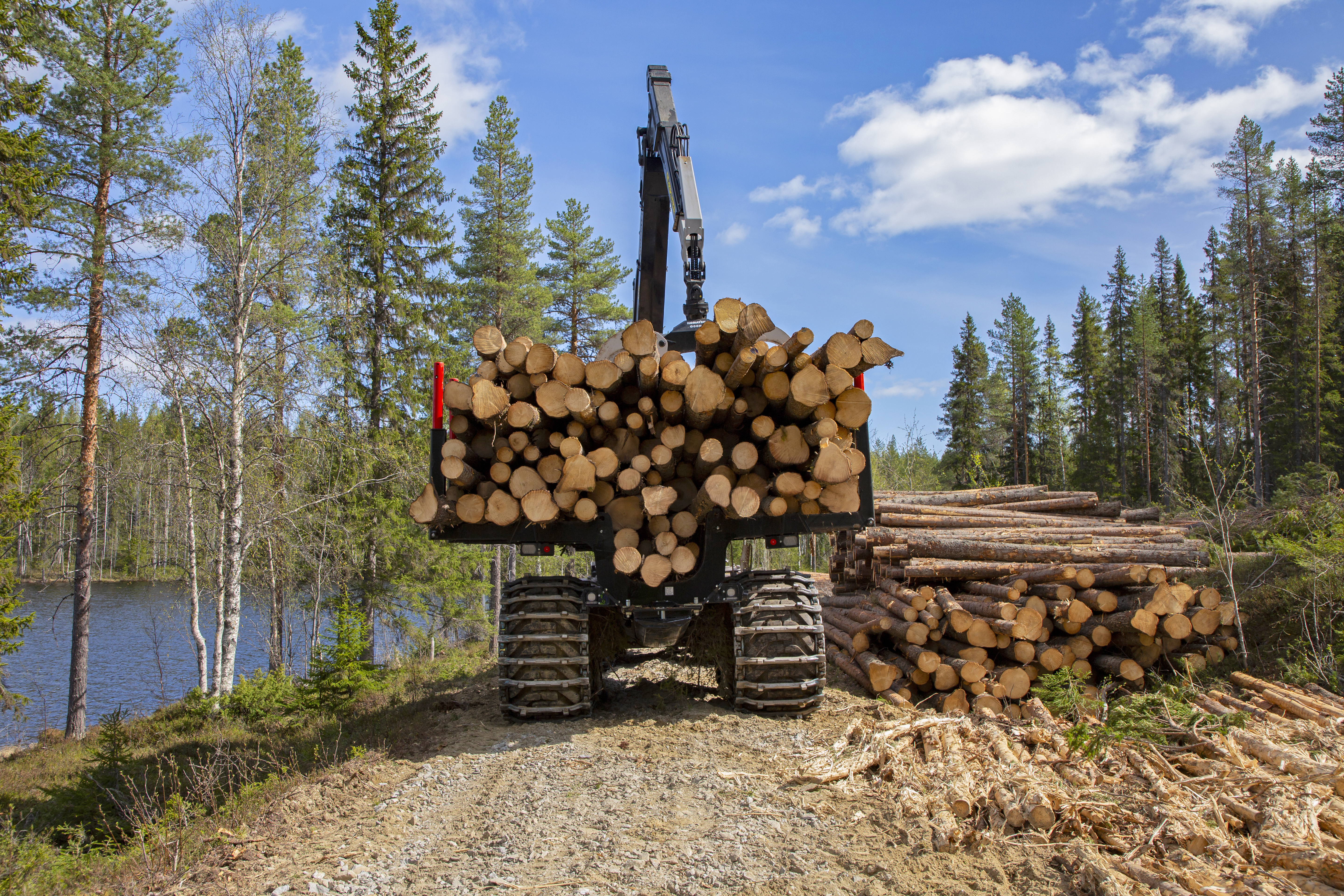

High load capacity

The new Komatsu 895 has a large bunk. FlexBunk, with its height adjustable stakes and ability to widen the bunk, provides a high load capacity. FlexGate, the flexible gate option, improves visibility and flexes out of the way if struck by the crane. This simplifies loading and minimises the risk of machine damage.

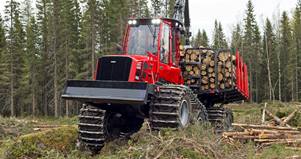

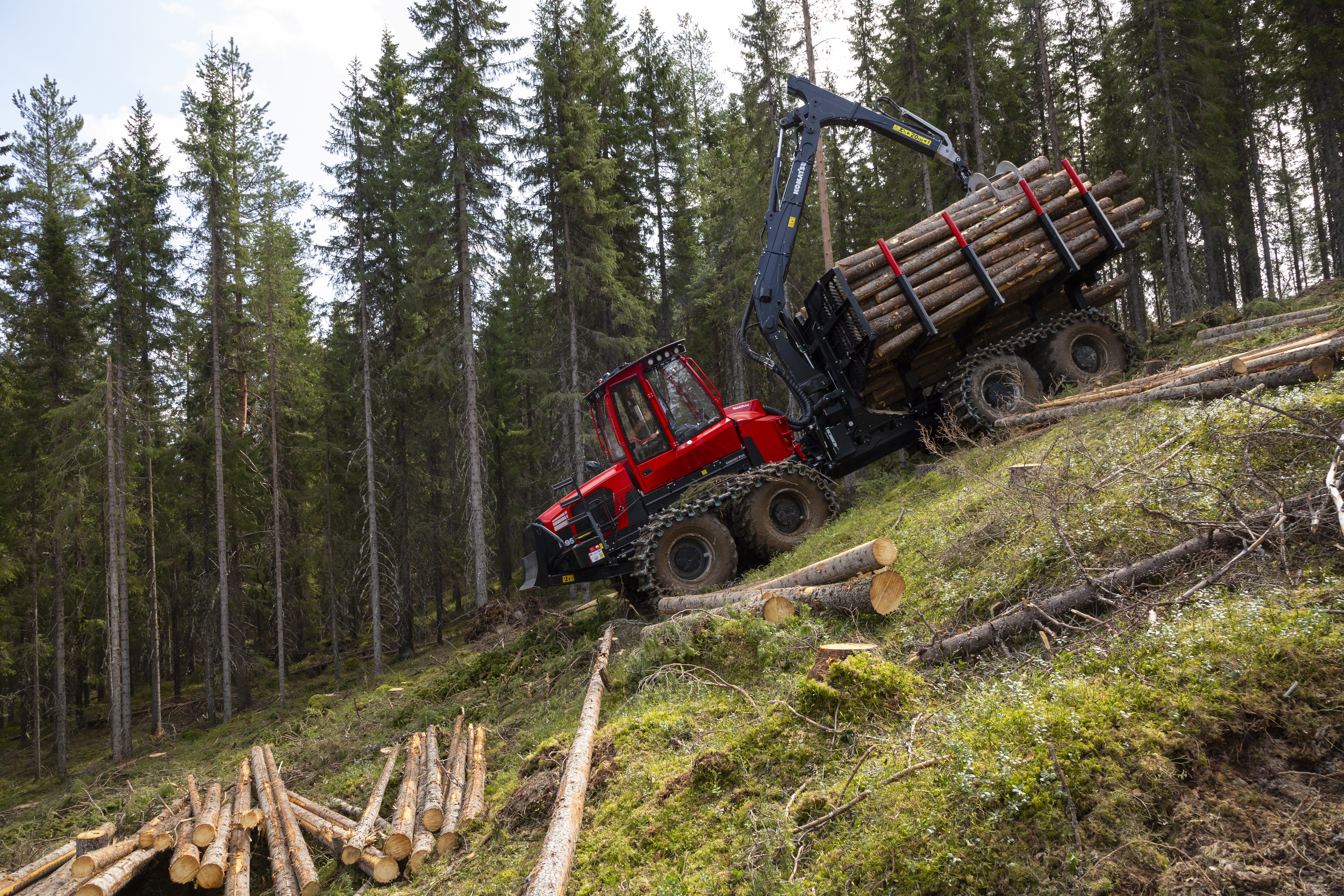

Maximum traction and manoeuvrability

The hydrostatic transmission system and the diesel engine’s performance are optimised to jointly provide maximum traction and manoeuvrability. A starting tractive force of 262 kN provides high torque at low engine speeds and traction is automatically adapted to changes in engine load due to terrain, obstacles, inclines and crane loads

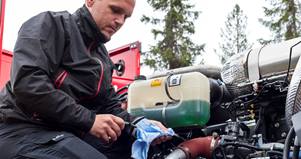

Service friendly

Servicing and maintenance are quickly and easily conducted. All daily servicing can be performed from ground level via easily accessible service hatches and the dipsticks are quickly and easily checked. Servicing is better facilitated by the electrically powered hood and strategically located filters.

Leave nothing to chance

Our MaxiFleet digital service is a comprehensive tool that simplifies your working day - regardless of whether your fleet is comprised of one or one hundred forest machines. MaxiFleet helps you to keep track of your machines, collaborate with colleagues and make informed decisions based on facts.

Specifications

895

Overview

A. Width

With 780/50x28.5 tyres: 3 160 mm

B. Length, total

10 790 mm (with shortest rear frame)

C. Length, front axle to middle joint

2 000 mm (6'7")

D. Length, middle joint to rear axle

3 900 mm (12'10") (with shortest rear frame)

E Transport height with hoses and tyre compression

4 050 mm

F. Ground clearance, at steering joint

8WD: 790 mm

Note

Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

6WD: 20 400 kg, 8WD: 23 600 kg

General information

AGCO Power, 6-cylinder diesel engine with turbo and intercooler. Stage II.

Stroke volume

7.4 l (1.95 gal)

Power

210 kW DIN (286 HP) at 1,900 rpm.

Torque

1,280 Nm at 1,500 rpm.

Fuel Tank

220 l

Gross load

20 000 kg (44,092 lb)

Bunk area

5.2–7.2 m² (56 - 77.5 sq.ft), depending on options and market.

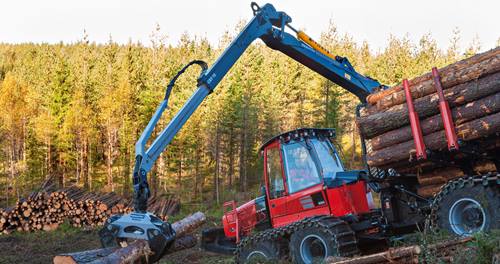

Crane

Komatsu 165F

Reach

7.5 m (24'7") / 8.5 m (27'11") / 10 m (32'10")

Gross lifting torque

165 kNm (121,698 lb-ft)

Gross slewing torque

43.4 kNm (32,010 lb-ft)

Rotator

G121/GT151/GT181

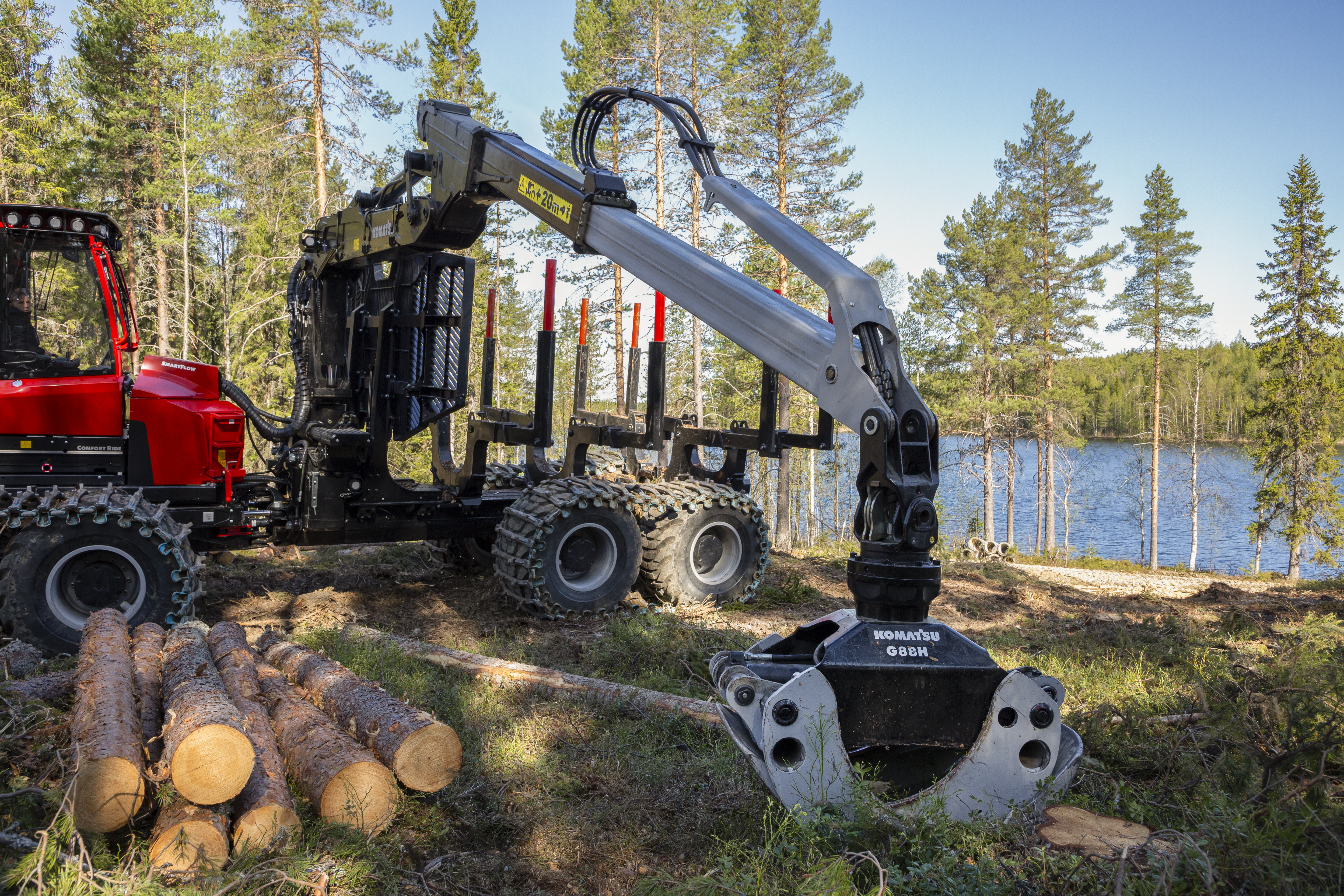

Grapple

We offer a wide selection of grapples, please contact your sales representative for more information.

Flow

0-360 l/min at 2000 RPM

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Driving Speed

0-23 km/h (14,3 mph)

Tranctive Force

262 kN

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
