Komatsu C93

Stronger, smarter and more profitable

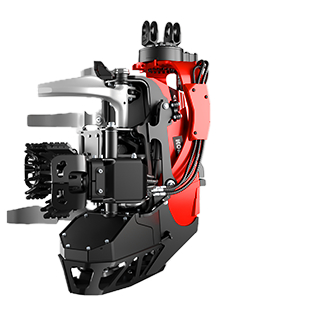

Komatsu C93

A highly productive, allround head for thinning that provides you with extra benefits through industry-leading experience and innovation. This is a good description of our new head, the Komatsu C93

Features

Highly productive

A highly productive, allround head for thinning that provides you with extra benefits through industry-leading experience and innovation. This is a good description of our head, the Komatsu C93.

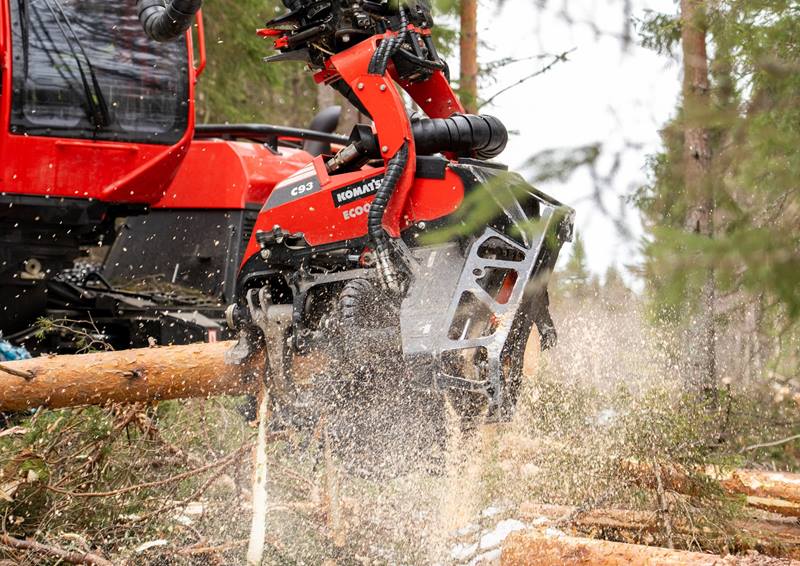

Upgraded cutting unit, Constant Cut

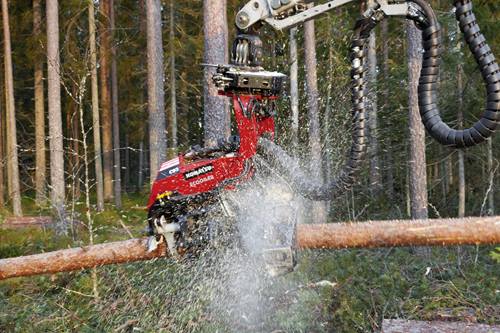

Constant Cut, our intelligent saw motor control, ensures that the head has a constant and efficient saw motor speed throughout the complete cutting cycle. This, in turn, ensures efficient cutting and limits problems with cutting cracks.

The Constant Cut cutting unit is upgraded for the Komatsu C93, featuring several improvements for increased reliability.

Eco-GLS

The lubrication system Eco-GLS (optional) reduces the consumption of lubricant, reduces fuel consumption, eliminates oil mist and reduces environmental impact

Service friendly

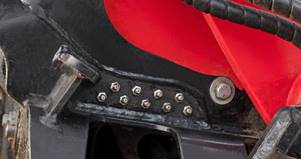

Safe and simple service, improved access around the valve assembly, centralised lubrication points

Specifications

C93

Overview

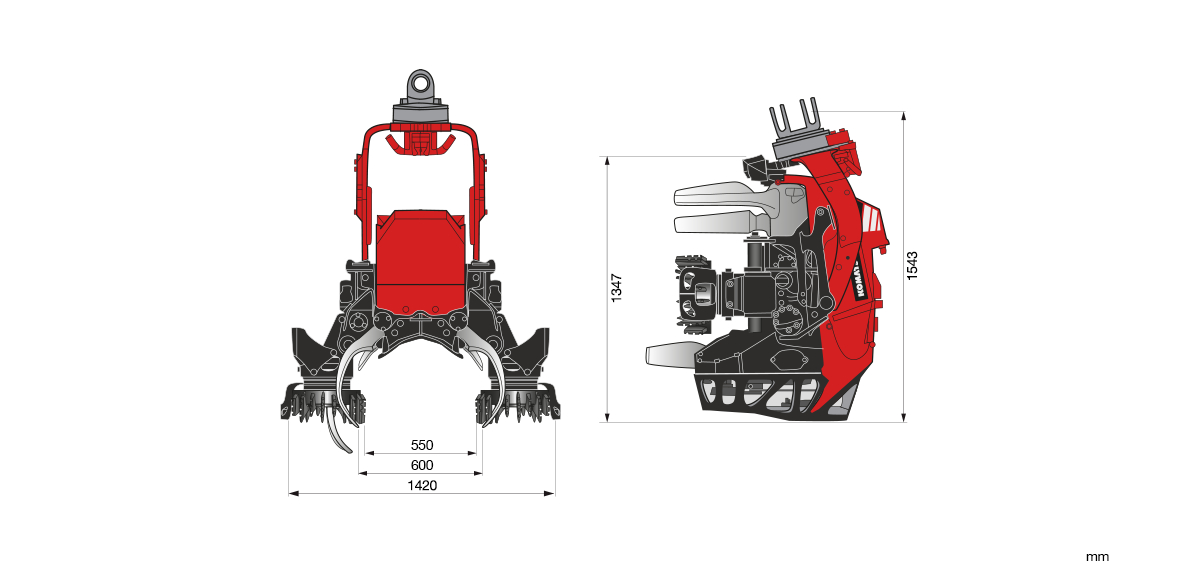

Komatsu C93 technical drawing
Max widht

1,410 mm

Height incl. rotator

1,530 mm

Height to vertical knife

1,370 mm

Opening knives, upper

610 mm

Opening knives, lower

345 mm

Roller opening, max

550 mm

Weight

from 995 kg

Feed speed

0-5 m/s

Gross feed force

Feed roller motor dependent: 22.5 kN / 28.4 kN

Feed wheel type

Steel rollers

Delimbing knives, number

4

Delimbing knives, opening

400 mm

Bar

75 cm

Saw motor

19 cm3/rev

Fell/Cut diam. theor. max

600 mm

Max hydraulic flow

Feed roller motor dependent: 250 l/min / 305 l/min

Max hydraulic pressure

28 MPa

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
