Komatsu S172
Unrivalled performance with large trees

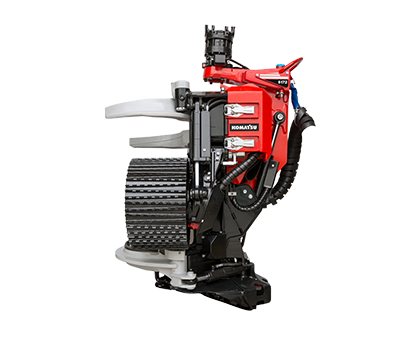

Komatsu S172
A mighty head with a two-wheel feed designed for massive and challenging forest. What's more, it's exceptionally reliable and easily customised to individual needs.
Weight (dry weight)
From 1 739 kg
Fell/cut diam. max
750 mm
Head opening, max
713 mm (28.1")
Delimbing diameter, tip to tip
500 mm (19.7")
Specifications
S172
Overview
Dimensions
Max widht
1,937 mm
Height incl. rotator
2,222 mm
Height to vertical knife
1 776 mm (69.9”)
Roller opening, max
713 mm
Opening front knife to rear knife
772 mm (30.4")
Opening front knives
757 mm (29.8")
Specifications
Weight
Dry weight, incl rotator, from 1,739 kg
Feed speed
0-5 m/s
Gross feed force
40,2 kN
Feed wheel type
Steel
Delimbing knives, number
4
Delimbing knives, opening
500 mm
Bar
90 cm
Saw motor
19 cm3/rev
Fell/Cut diam. theor. max
750 mm
Max hydraulic flow
300 l/min
Max hydraulic pressure
28 MPa
Notes
General information
Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
