Komatsu 931-4
Powerful all-round harvester
Komatsu 931-4

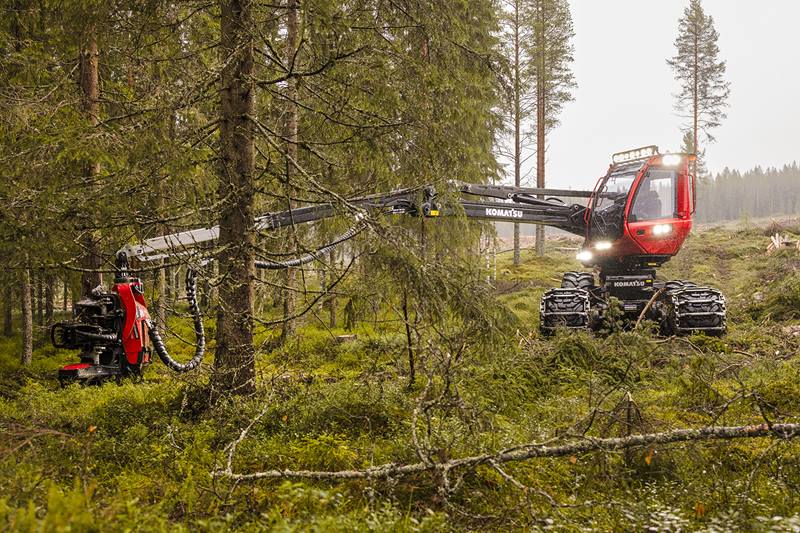

The combination of agility and strength makes the Komatsu 931 a really powerful all-round machine. It works equally well for late thinning and final felling.
- 6WD design means it's compact and easier to manoeuver in confined spaces
- 240H crane with 8,7 / 10 / 11m reach
- Choose from our range of options to customise your machine and make your working day even more comfortable and productive
Power
214 kW @ 1 850 rpm
EU Stage V, Tier 4F, MAR-1
Gross lifting torque
241kNm
177,752 lbf ft
Max tractive effort
193 kN
43,386 lbf
Weight
From 20 382 kg
44,935 lb
Specifications
931-4
Overview
Dimensions
A. Width
With 600/55x26,5 tyres: 2 726 mm (8'11")
B. Length, total
7 530 mm
C. Length, front axle to middle joint
1 930 mm (6'4")
D. Length, middle joint to rear axle
1 800 mm (5'11")
E. Transport height
Straight cab: 3930–3995 mm (depending on options). Transport position (cab max rear tilt, crane forward, light ramp tilted): 3910 mm
F. Ground clearance at steering joint
675 mm
Note
Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.
Weight
Approximate weight
From 20 382 kg (44,935 lb)
Engine
Type
AGCO Power 75FSTN-D5, 6-cylinder diesel engine with turbo and intercooler
Stroke volume
7.5 l (1.98 gal)
Power
214 kW @ 1 850 rpm (EU Stage V, Tier 4F, MAR-1)
Torque
1 280 Nm @ 1 850 rpm
Fuel tank
405 l (107 gal)
Boom
Model and reach
240H: 8.7 / 10 / 11 m (28'6.5" / 32'9.7" / 36'1")
Gross lifting torque
241kNm (177,752 lbf ft)
Gross slewing torque
47.5 kNm (35,034 lbf-ft)
Heads
Available heads
S92, C93, C124, S132, C144, 370E, S162E
Hydraulic system
Flow
485l/min @ 1470 rpm
System pressure
280 bar
Electrical system
Voltage
24 V
Battery capacity
2 x 185 Ah
Generator
200 A
Transmission
Driving speed
0-25 km/h (15.5 mph)
Tractive force
193 kN (43,386 lbf)
Notes
General information
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
