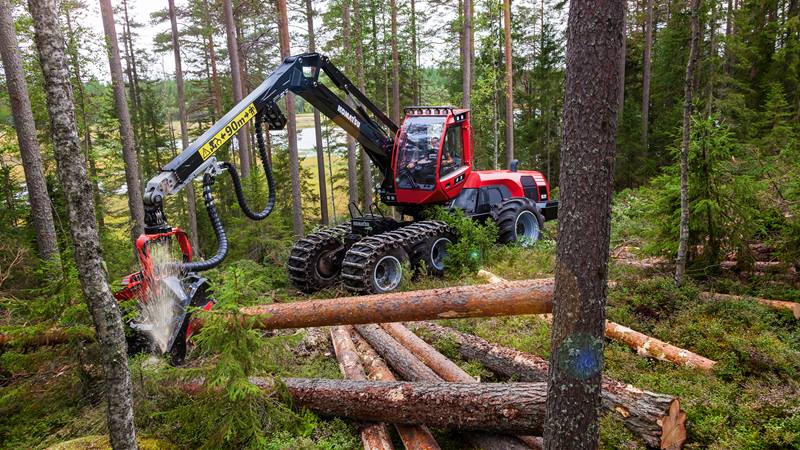

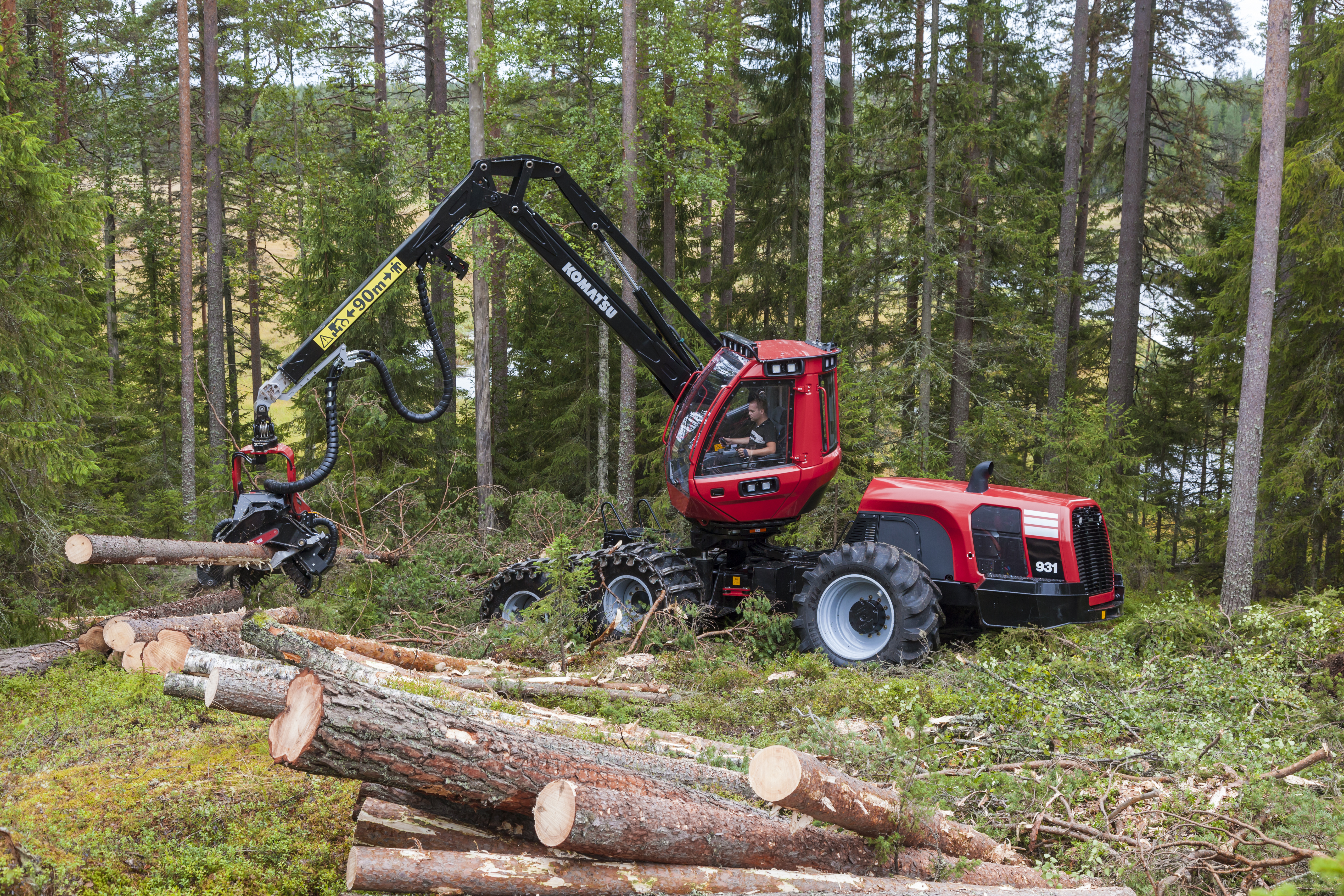

Komatsu 931

Strong and smart harvester

Komatsu 931

The Komatsu 931 is a strong harvester with optimal accessibility. With its high production capacity and good driver comfort, it is created for really demanding felling operations.

Download brochure

Weight ( appr.)

From 19 880 Kg

Stroke volume

7.4 l

Power

190 kW DIN at 1,850 rpm

Tractive force

189 kN

Features

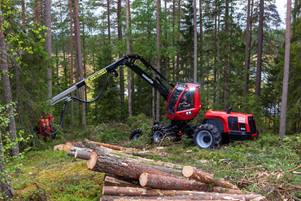

Revolutionary 3-pump hydraulics

The 931's immense work capacity is much due to the brand new 3-pump hydraulics, split into dual circuits with separate pressure levels. The system is power-regulated against the diesel engine and offers a class-leading hydraulic capacity of 584 l/min. Unique pressure and flow optimisation enables you to work considerably faster without losing hydraulic power. You can operate several crane and head functions simultaneously with maximum hydraulic power, such as slewing the crane, feeding a log and manoeuvring the machine with optimally low fuel consumption.

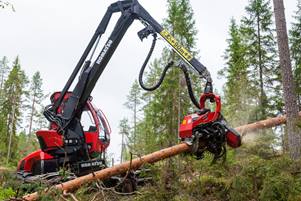

Parallel crane

Fast and powerful parallel crane, easy to operate. Mechanical crane tip control. Rapid out, powerful in. Parallel curve. Agile in thinning. Contributes to lower fuel consumption.

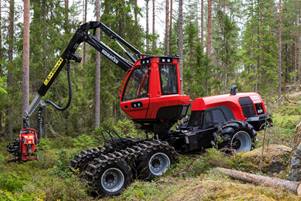

Levelling function

The cab levelling function means that you are always seated levelly and don't need to stretch and strain to maintain good posture.

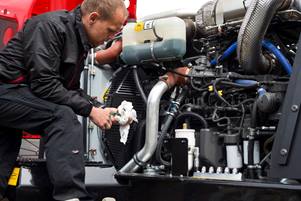

Service friendly

With easily accessible inspection and service points grouped together, an electronically operated engine hood and vertically mounted fuel and oil filters, the daily service is easily conducted.

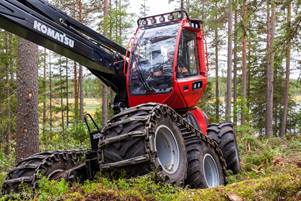

Improved off road manoeuvrability

Improved off-road manoeuvrability with higher ground clearance, greater tractive force and improved power steering.

MaxiFleet-ready

The machine is ready for installation of MaxiFleet, the world's first fleet management system for forestry machines. A unique tool that enables searches, compilations and presentations for all the machine and production data that your machine generate, with the powerful MaxiXT as the informations source.

More of MaxiFleet

Specifications

931

Overview

A. Width

With 600/55x26.5 tyres: 2 726 mm.

B. Length, total

7 525 mm

C. Length, front axle to middle joint

1 930 mm

D. Length, middle joint to rear axle

1 800 mm

E. Transport height

3950 mm to top of roof, straight cab. 3910 mm backwards tilted cab with tilted light ramp. Both measurements with tire compression.

F. Ground clearance at steering joint

685 mm

Note

Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

From 19 880 kg

Type

AGCO POWER, 6-cylinder, diesel engine with turbo and intercooler. Stage II.

Stroke volume

7.4 l

Power

190 kW DIN at 1 850 rpm

Torque

1130 Nm at 1,500 rpm

Fuel tank

405 L

Model and reach

230H: 8.7 m, 10 m, 11 m

Gross lifting torque

230 kNm

Gross slewing torque

47.5 kNm

Available heads

S92, C93, C124, S132, C144, 370E

Flow

528 l/min at 1,600 rpm

System pressure

280 bar (4,061 psi)

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Driving speed

0-21 km/h

Tractive force

189 kN

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.

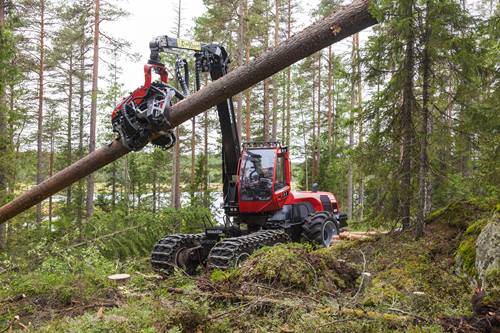

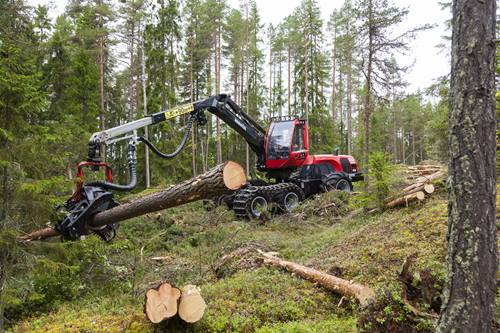

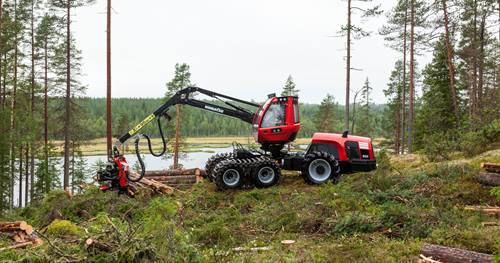

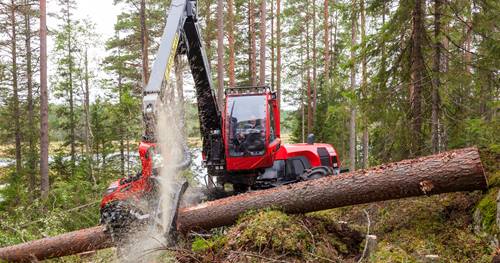

Gallery
