Komatsu C202

Strong, durable and highly productive harvester head

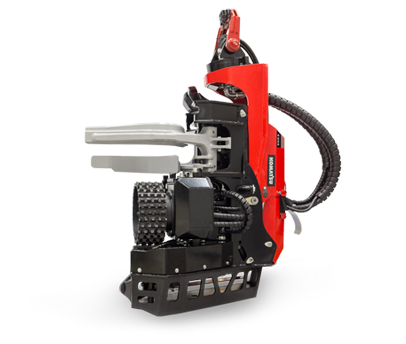

Komatsu C202

The Komatsu C202 is a high-quality, highly productive, and robust harvester head. The quality and the durability can be seen in everything from the sturdy frame and saw units to the stable attachments and reliable hydraulics. Everything to optimise reliability, service life and ease of service.




Komatsu C202 technical drawing
Max widht

1,645 mm

Height incl. rotator

1,995 mm

Height to vertical knife

1,700 mm

Opening knives

670 mm

Roller opening, max

650 mm


Dry weight, from 2,060kg

Feed speed

Feed roller motor dependent: 0–4/4.5 m/s

Gross feed force

Feed roller motor dependent: 36.3 kN / 39.6 kN

Feed wheel type


Delimbing knives, number


Delimbing knives, opening

560 mm


84 cm

Saw motor

30 cm3/rev

Fell/Cut diam. theor. max

700 mm

Max hydraulic flow

330 l/min

Max hydraulic pressure

30 MPa

General information

Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
