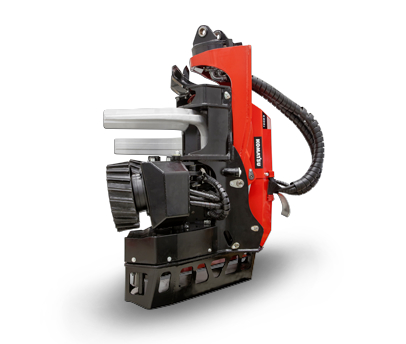

Komatsu C202E
The strong, durable and highly productive harvester head
Komatsu C202E
The Komatsu C202E is a high quality, highly productive and robust head. It is also something as unusual as a large head with a debarking function, ideal for hardwood. It has a powerful frame and saw unit as well as sturdy brackets and dependable hydraulics. All to opimise reliability, service life and service friendliness.
Weight (dry weight)
From 2010 kg
Height (incl. rotator)
1995 mm
Fell/cut diam. theor. max
650 mm
Feed speed
0–4,5-6 m/s
Specifications
C202E
Overview
Dimensions
Max widht
1,575 mm
Height incl. rotator
1,995 mm
Height to vertical knife
1,745 mm
Opening knives
675 mm
Roller opening, max
650 mm
Roller diameter
460 mm
Specifications
Weight
Dry weight, from 2,010kg
Feed speed
debarking: 0–6 m/s (0–20 ft/s), non-debarking 0-4,5 m/s (0-15 ft/s)
Gross feed force
Feed roller motor depending. Debarking: 0–6 m/s / Non-debarking: 0-4.5 m/s
Feed wheel type
Steel
Delimbing knives, number
4
Delimbing knives, opening
425 mm
Bar
88 cm
Saw motor
30 cm3/rev
Fell/Cut diam. theor. max
650 mm
Max hydraulic flow
320 l/min
Max hydraulic pressure
30 MPa
Notes
General information
Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
